Facilities

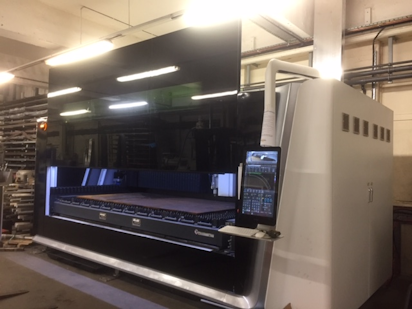

Bodor i7 CNC Laser cutter

Our latest piece of machinery is a Bodor i7 CNC enclosed fiber laser cutting machine. A super fast, precise CNC machine utilising the latest in laser technology.

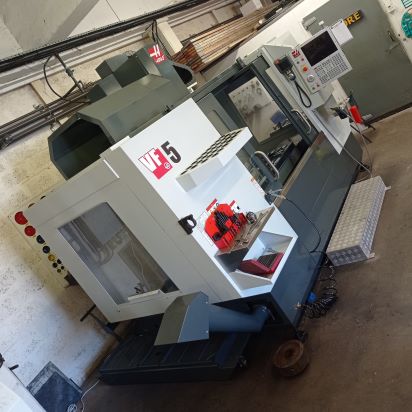

Haas VF-5 CNC Milling

The HAAS VF5 is a vertical machining center used for precision manufacturing. It has a spindle speed of up to 12,000 RPM and a maximum cutting feed rate of 833 IPM. The machine has a work envelope of 50" x 26" x 25" and can handle a maximum table load of 4,000 lbs. The VF5 is equipped with a 20-tool capacity automatic tool changer, which can change tools in 4 seconds. It is designed for high-precision machining of a wide range of materials, including metals, plastics, and composites.

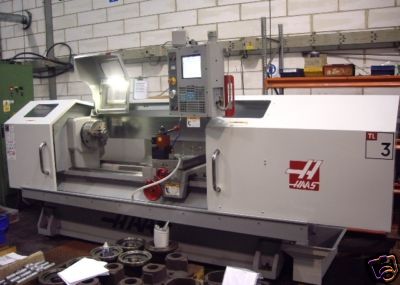

Haas TL3 CNC/Manual Toolroom Lathe

SPECIFICATION

The TL-3 has a maximum cutting capacity of 20" x 60" (508 x 1524 mm), with a maximum part swing of 20" (508) over the front apron and 13" (330) over the cross slide. The spindle bore is 3.50" (89 mm).

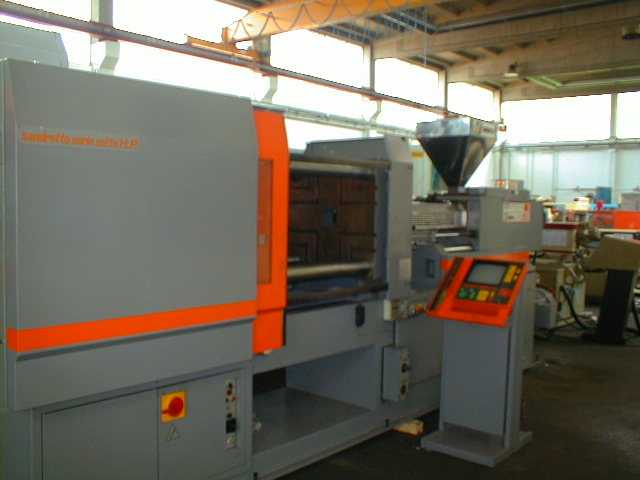

Sandretto 250 tonne Injection Moulder

SPECIFICATION

Model: 7 Series H.P.
Tonnage: 250
Step columns: 530 x 530 mm
Screw diameter: 60 mm
Volume d 'calculated injection: 835 Cm3
Min / Max mold thickness: 200/650 mm
Robot Interface Euromap 12: Yes
Jacks: 1
Euromap 1250
Moving platen stroke: 530 mm

Welding

SPECIFICATION

Mig Welding 195 Amp.
Arc Welding to 400 Amp.
Tig Welding 200 Amp.
Oxy/acetylene Cutting and welding.
Brazing, lead and Silver soldering.

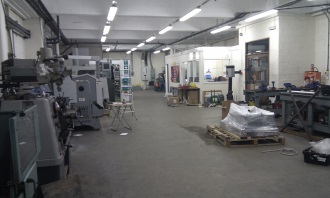

Machine Shop and Toolroom Facilities

SPECIFICATION

Haas TL3 CNC/Manual Toolroom Laithe.
Haas VF3 Vertical Machining Centre with 4th Axis Capability.
Bridgeport Type Manual Turret Milling Machine with 3 Axis DRO.
Colchester Triumph 2000 Centre Laithe with 2 Axis DRO.
Robbi Alpha 10 Surface Grinder
Hurco Die Sinking EDM (Spark Erosion Machine)Radial Arm Drilling up No 5 Morse Taper.½ Tonne Mobile Gantry.
Bandsaw to 12” Round.
Darex E90 Tool Sharpner Carbide/ HSS
Metric and Imperial Broaching to 70mm.
Extensive Measuring, Drilling, Tapping and Reaming equipment.

Diesel Shop

SPECIFICATION

Hartridge 1100 Mk2 Test Bench.
Merlin S400-5 Electronic Injector Tester.
Merlin Precision Nozzle Grinder.
Mobile Merlin CVM Metering Unit.
Deteq ART45, ART70 and ART 40 Electronic Vehicle simulators.
Common Rail Merlin Vehicle Diagnostic Kit.
Diesel Compression Testing Equipment.
Cylinder Head Pressure tester.
